Magnetic Encoders with Ethernet Interfaces

Magnetic Encoders with Ethernet Interfaces

Letzte Änderung: Autor: POSITAL FRABA

POSITAL now combines the advantages of the high precision magnetic technology with well-established and powerful Ethernet interfaces.

▼ mehr lesen

Fast and Accurate for Unlimited Applications

POSITAL now combines the advantages of the high precision magnetic technology with well-established and powerful Ethernet interfaces.

IXARC magnetic encoders provide a maximum resolution of bit, bit accuracy, a maximum number of turns and rapid dynamic response that rivals the best optical encoders. Multiturn models count any desired number of revolutions, provided by a unique self-powered revolution counting system that keeps track of absolute positions under all conditions.

  • Contact-free Magnetic Measurement
  • Singleturn Resolution of up to bit Real-Time
  • Long Lifetime without Battery
  • Accuracy of up to bit
  • Up to Turns
  • LED Indicators, Easy Cabling
  • Compact Design with M Connectors

EtherCAT and PROFINET magnetic encoders are available with multiple options for housing size and materials, flange configuration, shaft type and diameter.

PROFINET is a real time Industrial Ethernet standard from Profibus&ProfiNet International designed for automation. PROFINET includes special Ethernet communications protocols to provide real-time signaling between devices.

EtherCAT is an industrial communication protocol with very fast cycle time of up to µs. Developed by Beckhoff and managed by EtherCAT Technology Group it is based on Ethernet-Frames and has a structure of shift register.

Industries

  • Material Handling
  • Factory Automation
  • Construction Machinery
  • Renewable Energy
  • Healthcare
  • Elevators
▲ weniger anzeigen

Programmable Encoder 2.0

Programmable Encoder 2.0

Letzte Änderung: Autor: POSITAL FRABA

POSITAL is introducing powerful new programming capabilities and tools for their IXARC series of rotary encoders. With these new capabilities, the encoders’ performance characteristics can be extensively modified through software changes,without requiring

▼ mehr lesen

No Software, No App, No Installations

POSITAL is introducing powerful new programming capabilities and tools for their IXARC series of rotary encoders. With these new capabilities, the encoders’ performance characteristics can be extensively modified through software changes, without requiring any changes to physical components. In a related development, POSITAL is introducing the UBIFAST configuration tool, a hardware module that can be easily connected to programmable encoders through accessory cables. The UBIFAST tool features a built-in WiFi hotspot and webserver. Once the tool has been powered up, any WiFi-enabled smartphone, tablet, or laptop computer can connect to the WiFi hotspot and the configuration interface will automatically open up in a standard web browser window – no app, no software installation, and no Internet connection are required.

POSITAL also presents an Internet-enabled configuration management system for IXARC programmable encoders. Whenever a device is reconfigured, the operator has the option of registering the changes with POSITAL through an automatic email interface.



One Hardware − Thousands of Encoders

  • Very Compact UBIFAST Configuration Box Creating Wifi Hotspot
  • Incremental and absolute encoder functions on a common hardware platform
  • Wide range of mechanical configurations and connector types – literally thousands of models are offered
  • Compact mm versions – small enough to fit in the palm of your hand
  • Supported by comprehensive configuration management tools that can be accessed by end users over the full working life of the encoder
  • Up to One Million Revolutions
  • Parameters to Program: PPR, Resolution, Number of Turns, Direction
▲ weniger anzeigen

Safety Light Curtain RAY-LG

Safety Light Curtain RAY-LG

Letzte Änderung: Autor: POSITAL FRABA

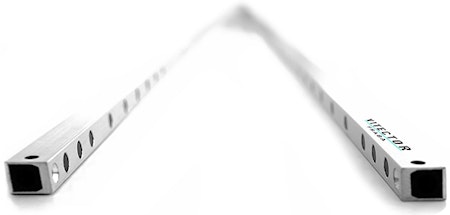

RAY-LG is a very compact safety light curtain designed to monitor all types of high-speed doors, sectional doors and industrial doors with a maximum operating range of 8 m. It features up to 50 elements and a minimum resolution of 50 mm.

▼ mehr lesen

RAY-LG

RAY-LG is a very compact safety light curtain designed to monitor all types of high-speed doors, sectional doors and industrial doors with a maximum operating range of 8 m. It features up to elements and a minimum resolution of mm.

Thanks to its door blanking feature RAY-LG can be installed directly into the guide rails of the gate. The use of criss-cross beams makes RAY-LG capable of detecting even small objects. In addition RAY-LG is very easy to install and is available with various beam spacings and electrical outputs. A very high light reserve, as well as its IP rating, makes the RAY-LG insensitive to dust, dirt and water. For the detection of drawbars VITECTOR offers a version with elements and a minimum resolution of mm.

Features

  • RAY-LG x5xx: EN Type E Device Available
  • RAY-LG x1xx: High Detection Capability due to Cross Beams
  • Automatic Door Recognition (“Blanking”) with Partial Door Opening
  • Track-Mounting
  • Designed for Door Speed up to 2.5 m/s
  • Resistant to Dust, Dirt and Water
  • IP Waterproof Housing
  • Increased Immunity from Ambient Light
  • OSE Output or Semiconductor Output Available
  • Cross Section of Only × mm
  • Safety Cat. 2, PL d acc. to EN ISO
